AC3 Automatic Control LED Light

Advanced Features

10~50˚ BEAM ANGLE VARIABLE
STRONG LIGHT DISTRIBUTION
& PERFECT COLOR EXPRESSION
@ THE SAME TIME

-IP65 INGRESS PROTECTION
-WATERPROOF LED LIGHTING FOR OUTDOOR
-REMOVABLE POWER SUPPLY UNITS (PSU)
-LIGHT WEIGHT COMPARED TO CAPACITY

1.NFC COMMUNICATION
2.WIRELESS DMX COMMUNICATION
3.VIDEO SIGNAL COMMUNICATION

TO EFFECTIVELY CONTROL HEAT DISSIPATION A PREMIUM WATER COOLING SYSTEM HAS HEEN IMPLEMENTED

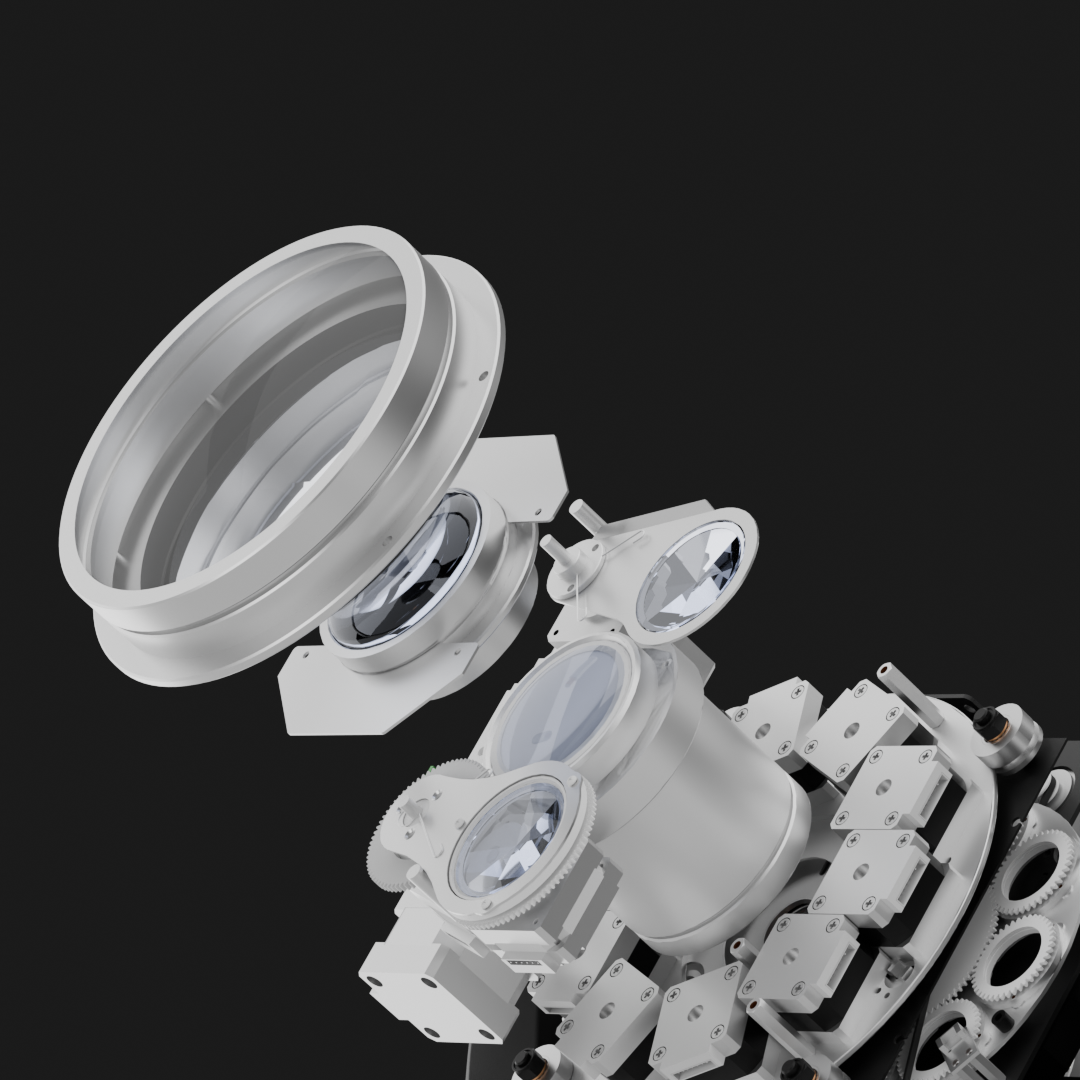

Optical Design

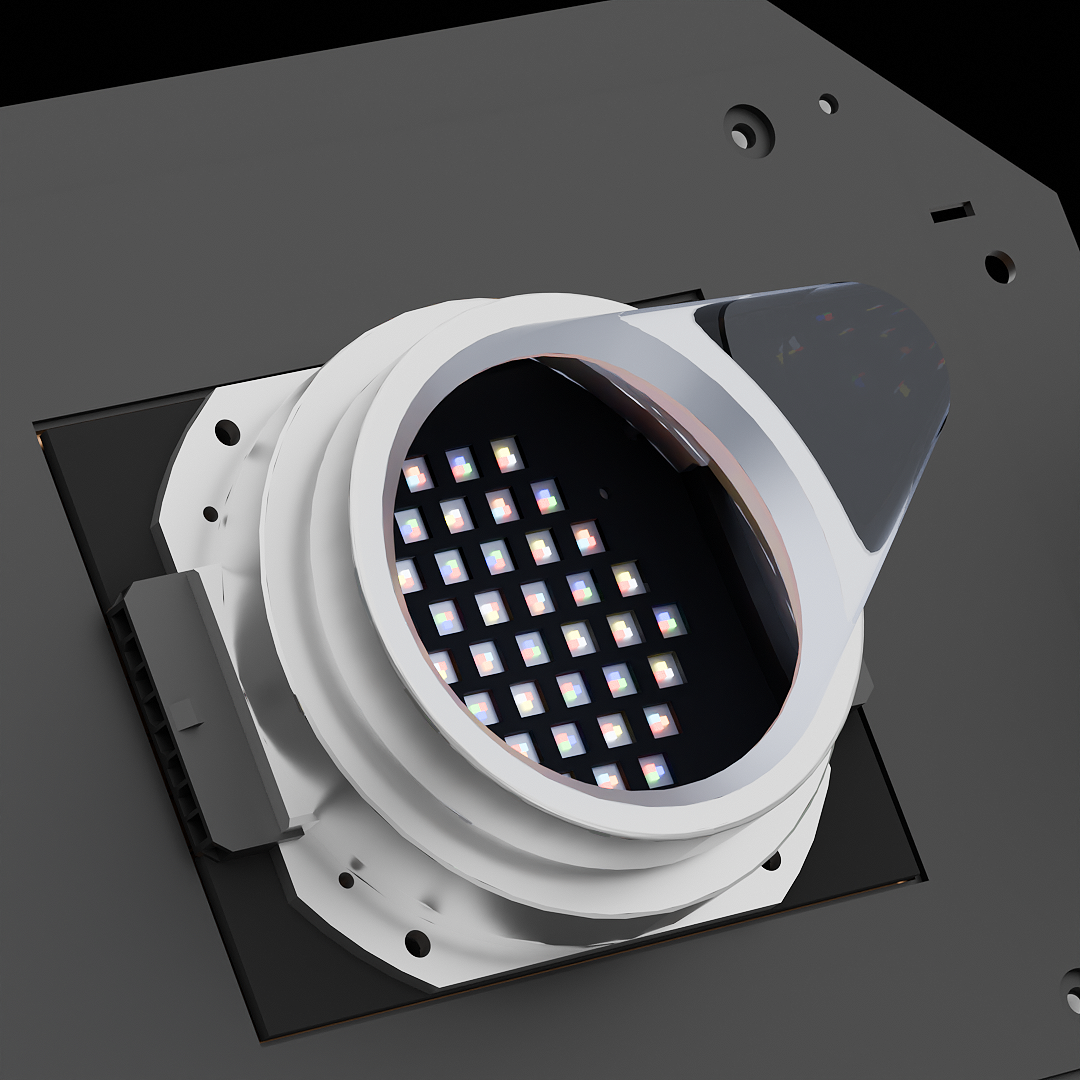

Light Source Production

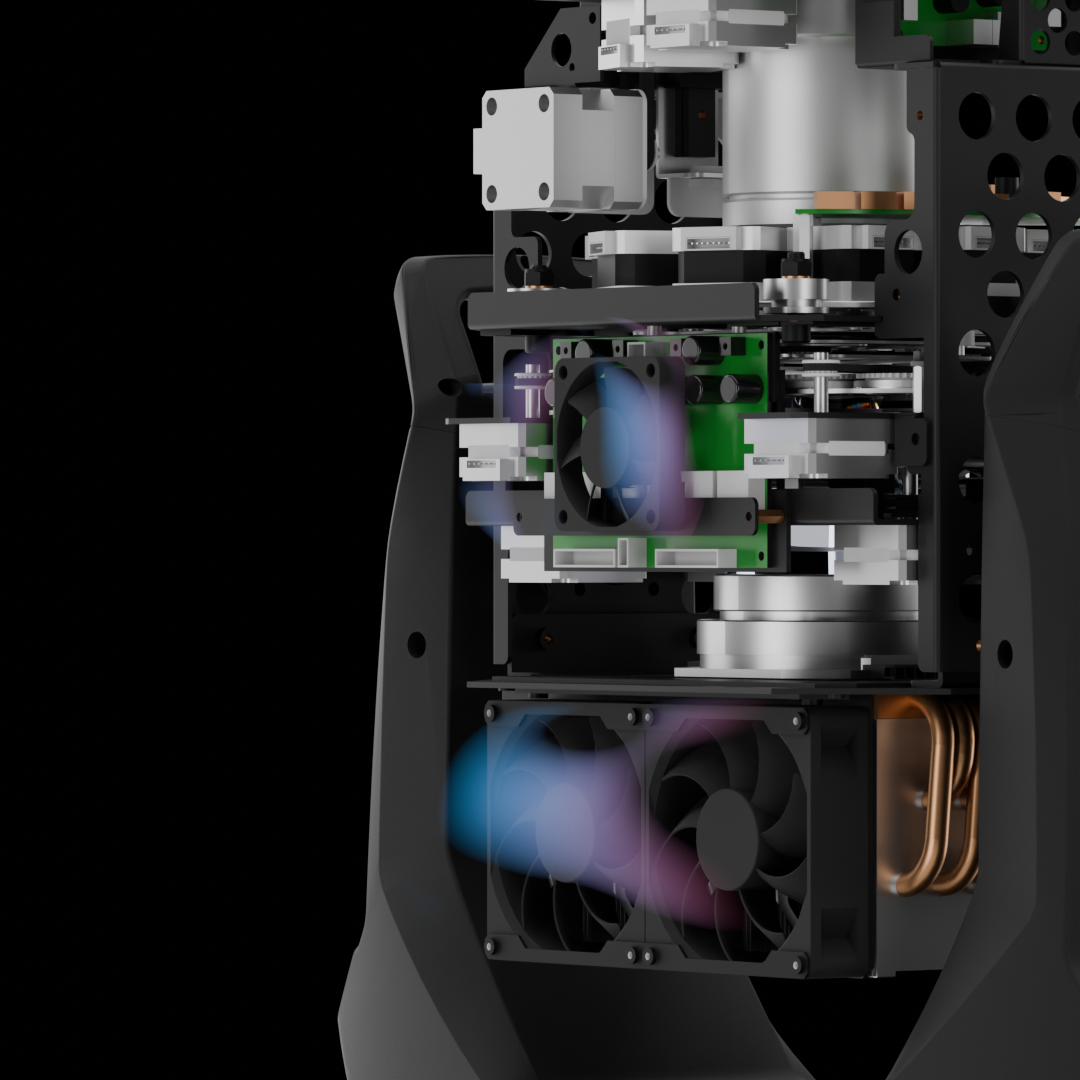

Heat dissipation design

4Leaf Barndoor Operates Automatically

Detachable design of the barndoor

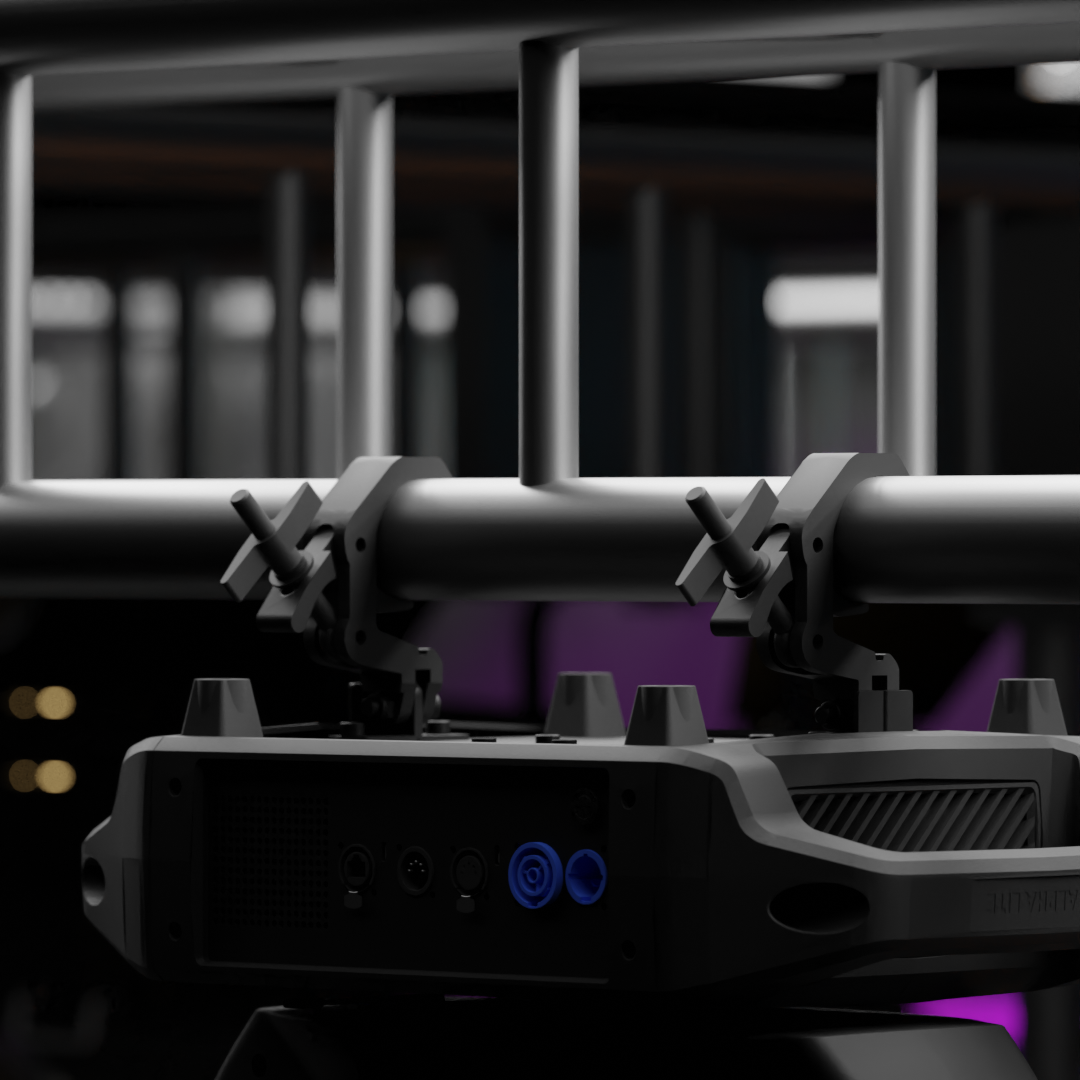

Sturdy Camp_Ultimate safety

Rated Watt / Lux@5M: 1,700-2,000W / 3,500Lux @ 5M&5600K

Color Mixing: 8Color : R1, R2, G, B, A, L1, L2, C+W

CCT / CRI: 2,000~35,000K / 95~99

Beam Angle: 10~50° / 20~60°

Wire&Wireless Control: DMX, Ethernet, RDM, CRMX, NFC, APP

Dimming control&Resolution: DMX, On-board / 16-bit, curves

Control Channels: 6-channel / 12-channel modes

Focus Lens size: Fresnel 300mm diameter(12")

Dimension: 463 x 729 x 782mm (incl.Barndoor&york)

Wegiht: 38kg

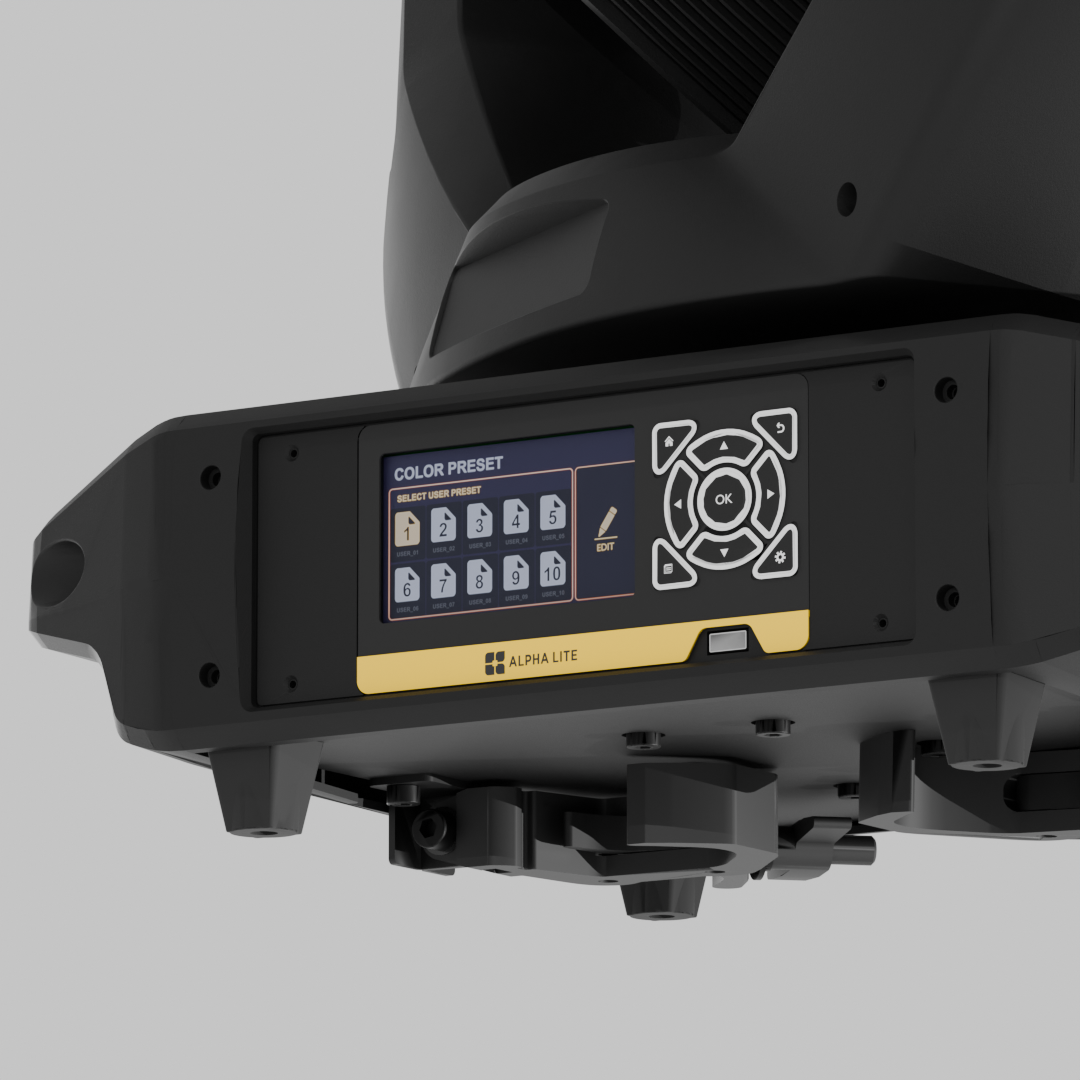

Display: 4.3" Full color LCD

Focus knob: Manual focus Knob / LCD touch focus control

Cooling: Water cooling system

Power supply: Detachable PSU include stand-foot&super clamp

Interested in the ALPHA-LITE LED Lighting System?
Contact our sales team for pricing and availability.
